5 Series Geogrid
5 Series Geogrid is uni-directional geogrid composed of high molecular weight, high-tenacity multifilament polyester yarns that are woven into a stable network placed under tension. SRW geogrids use 100% virgin resin with NO regrind materials and are the best for soil reinforcement applications such as retaining walls, steep slopes, embankments, and more. Add strength and longevity to your hardscape projects while providing superior stress transfer. Made in the USA.
- Adds strength and longevity to retaining walls
- Provides excellent stress transfer
- Helps prevent wall failure
- Easy to handle roll sizes
- Designed for walls up to 15’
- LTDS of 2064 lb/ft.
- Retaining walls
- Steep slopes

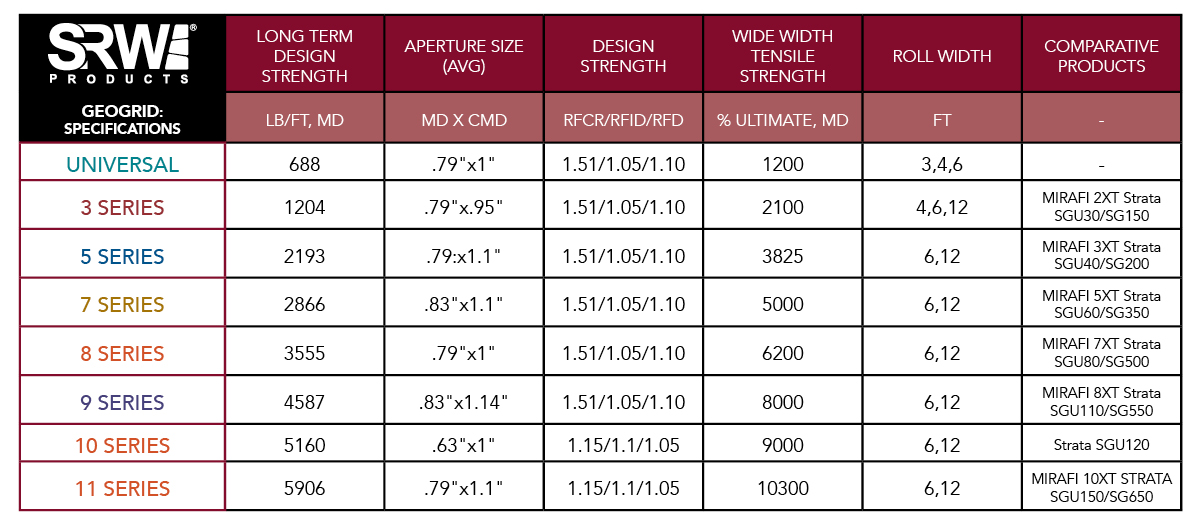

5 Series | Uni-Directional | LTDS 2064 | Walls up to 15´
| PART NUMBER | SIZE | SQ YDS/ROLL | QUANTITY |
| GSRW 565 | 6’x50′ | 33.33 | 50/PLT |
| GSRW 5615 | 6’x150′ | 100 | 30/PLT |
| GSRW 51215 | 12’x150′ | 200 | 3/BNDL |
Visit our Dealer Locator to find out where you can purchase our products!
5 Series Retaining Wall Geogrid Instructions
-
Follow Retaining Wall Instructions
- Follow the installation instructions supplied with the retaining wall system including foundation preparation, block alignment, core filling, drainage rock placement, backfill placement, and compaction.
- Place the next course of block on top of the geogrid.
- Eliminate any folds or looseness in the geogrid by pulling tight and staking at the back.
-
Backfill, Compact, & Repeat
- Backfill must be compacted and level with the top of the retaining block course prior to installation of geogrids. The geogrid should start near the face of the block and remain in one continuous piece to the back of the reinforced soil mass (no splicing). Butt together at edges — do not overlap geogrid.
- Backfill and compact the soil to 95% standard proctor. Always backfill and compact one course of block at a time. Keep an adequate cushion of soil between the geogrid and equipment.
- Repeat process until retaining wall is completed.
Where can I buy SRW geogrid?
Can I use 5 Series under a paver driveway with poor soil conditions?
While the 5 series grid is an excellent geogrid for retaining wall applications, our Ultra Drive 3D is specifically designed for use under paver driveways. Learn more about Ultra Drive 3D.
Do you have additional questions? Contact us.
