Universal Geogrid
Our Universal Retaining Wall Geogrid’s high-strength polyester yarns are coated
with a PVC material and built to resist biological degradation. SRW geogrids can withstand natural chemicals, alkalis, and acids. Our geogrids are the best on the market for soil reinforcement applications such as retaining walls, steep slopes, embankments, sub-grade stabilization, and embankments over soft soils and waste containment applications.
Features
Applications
Comparison Charts
Product Details
Features
- Adds strength and longevity to retaining walls
- Provides excellent stress transfer
- Helps prevent wall failure
- Easy to handle roll sizes
- Designed for walls up to 6′
- LTDS of 688 lb/ft.
Applications
- Retaining walls
- Steep slopes

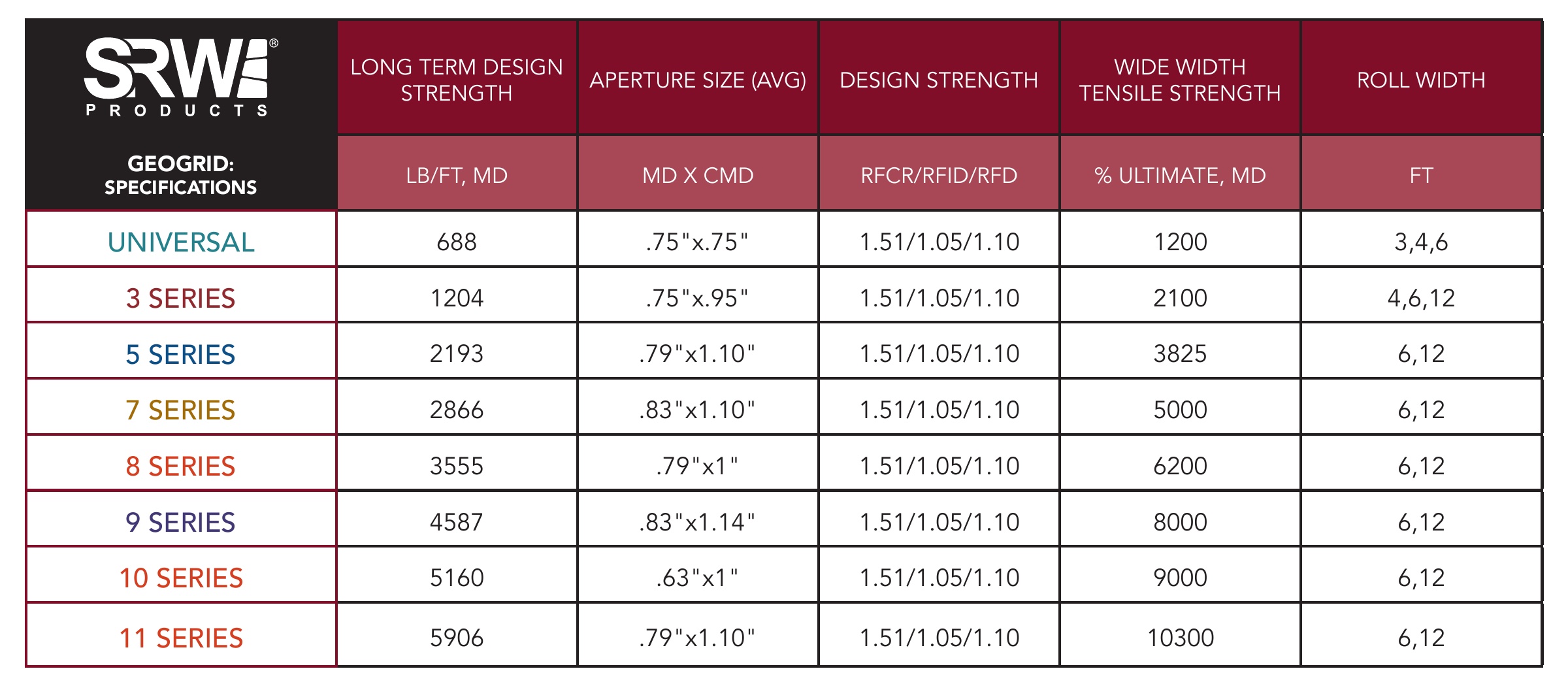

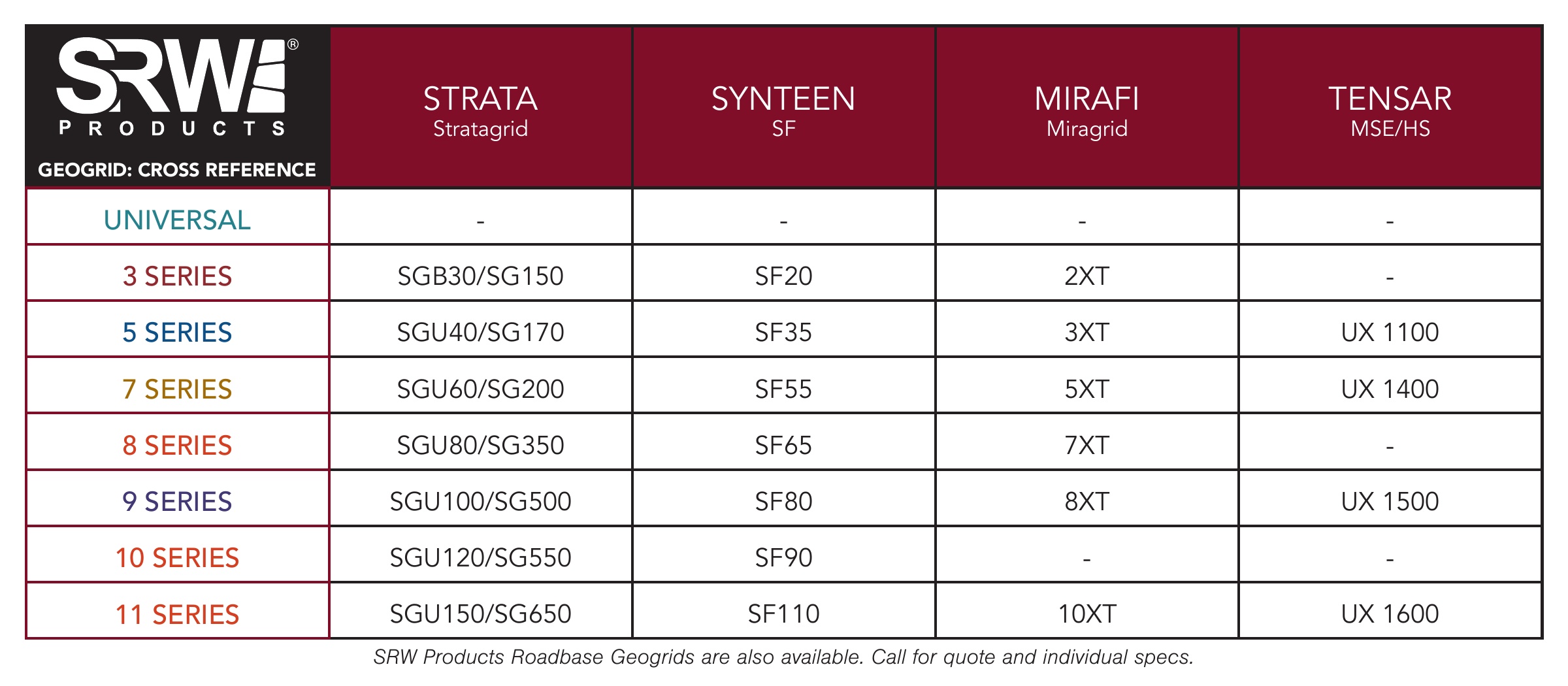

Comparison Charts
Product Details
Universal | Bi-Directional | LTDS 688 | Walls up to 6´
| PART NUMBER | SIZE | SQ YDS/ROLL | QUANTITY |
| GSRW U350 | 3’x50′ | 16.67 | 20/CTN |
| GSRW U450 | 4’x50′ | 22.22 | 10/CTN |
| GSRW U650 | 6’x50′ | 33.33 | 40/PLT |
Looking to Buy?
CONTRACTORS: If you are a contractor looking to try one of our products, click here for a dealer in your area, or click here to connect with your local sales rep for a demo.
DEALERS: If you are a dealer looking for an in-store demo or to bring a product in, click here to find your local sales rep.
HOMEOWNERS: If you are a homeowner, click here to find a dealer in your area.
Universal Retaining Wall Geogrid Instructions
-
Follow Retaining Wall Instructions
- Follow the installation instructions supplied with the retaining wall system including foundation preparation, block alignment, core filling, drainage rock placement, backfill placement, and compaction.
- Place the next course of block on top of the geogrid.
- Eliminate any folds or looseness in the geogrid by pulling tight and staking at the back.
-
Backfill, Compact, & Repeat
- Backfill must be compacted and level with the top of the retaining block course prior to installation of geogrids. The geogrid should start near the face of the block and remain in one continuous piece to the back of the reinforced soil mass (no splicing). Butt together at edges — do not overlap geogrid.
- Backfill and compact the soil to 95% standard proctor. Always backfill and compact one course of block at a time. Keep an adequate cushion of soil between the geogrid and equipment.
- Repeat process until retaining wall is completed.
Frequently Asked Questions
Where can I buy SRW geogrid?
Call us at 1-800-752-9326 or use our dealer locator. We will gladly help locate a dealer near you!
Do you have additional questions? Contact us.
